Description

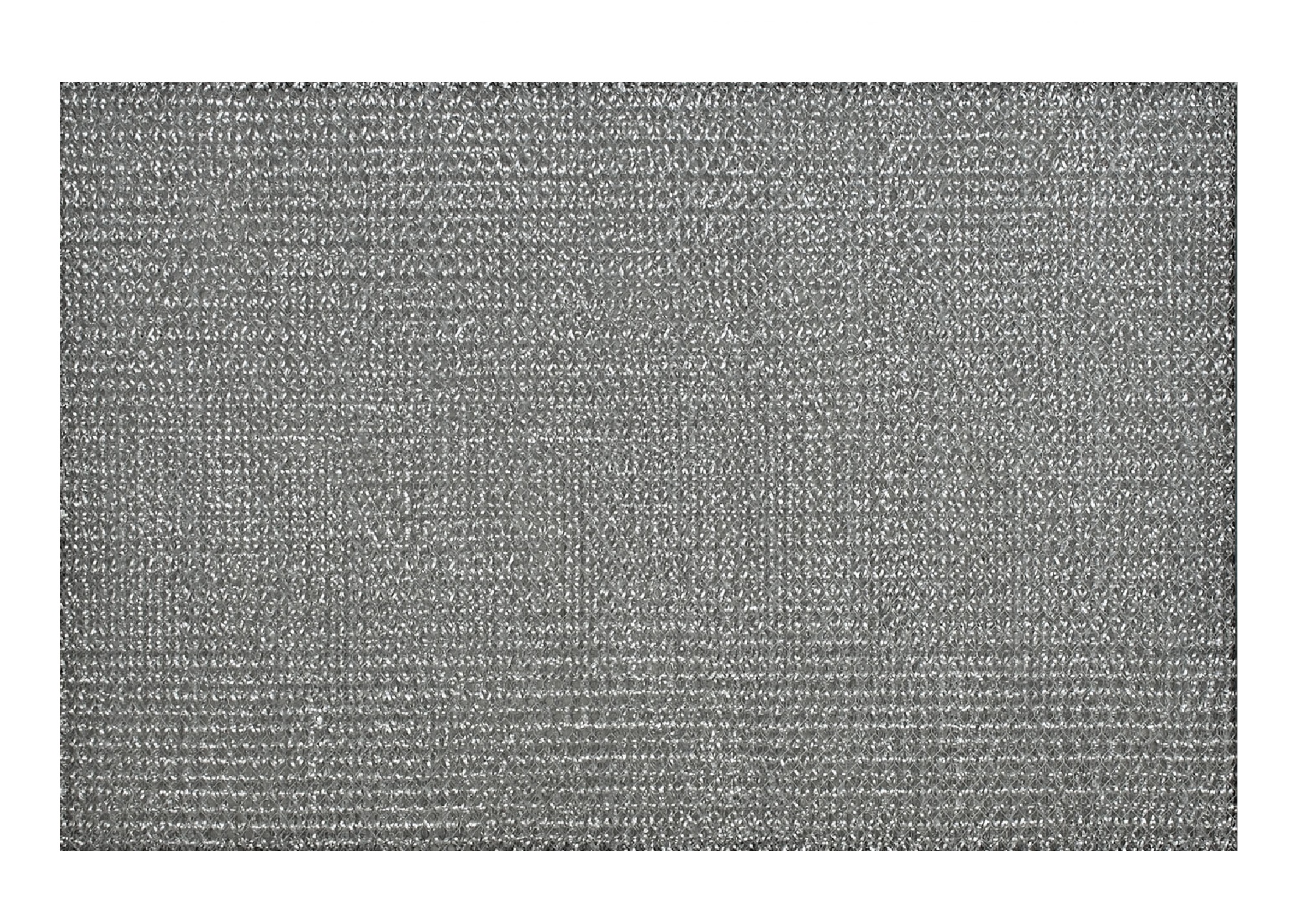

Aluminum Mesh Foil Sheet — 15″ × 24″ × 1⁄4″ | Range Hood Grease Filter Media, No Frame
The RHFS0050 1 15×24×1⁄4 is a raw aluminum mesh foil sheet measuring 15″ × 24″ × 1⁄4″, sold as media stock without a frame. This product is intended for customers who need new filter mesh material to rebuild or replace the media core of an existing framed range hood grease filter, or to fabricate a custom filter insert using a serviceable aluminum perimeter frame. The foil sheet is cut from the same multi-layer aluminum mesh stock used in all American Metal Filter Company grease filter production runs.
Aluminum mesh foil is raw filtering media — not a finished filter. If you need a ready-to-install replacement grease filter complete with a perimeter frame, see our standard-size and custom-size grease filter product listings. This listing is for applications where the original frame is still structurally sound but the mesh core has become permanently loaded with grease, physically damaged, or otherwise spent beyond the point of effective cleaning.
Range Hood Filters Inc. is an independent manufacturer of aftermarket range hood filters and accessories since 1986. Manufactured in the U.S.A.
Key Benefits — Aluminum Mesh Foil Range Hood Filter Media
- Frame Rebuild Without Discarding Sound Hardware: When the mesh is spent but the aluminum frame remains intact, replacing only the media is more economical than discarding the entire filter assembly.
- Cuts to Any Smaller Dimension: The 15″ × 24″ sheet can be cut with tin snips or heavy scissors to any required smaller insert size. One sheet can yield multiple inserts for smaller filter bays.
- Same Mesh Stock as Finished Filters: Manufactured from the same deep-draw multi-layer aluminum mesh used in our full framed-filter product line — identical grease-capture performance.
- Washable and Reusable: Like finished aluminum mesh grease filters, the foil media can be washed monthly in the dishwasher or by hand with hot water and degreaser to maintain performance.
- Made in the U.S.A.: All American Metal Filter Company aluminum mesh stock is produced domestically.
RHFS0050-1-15x24x1/4 Aluminum Mesh Foil Specifications
| Specification | Detail |
|---|---|
| Sheet Dimensions | 15″ × 24″ |
| Thickness | 1⁄4″ (0.25″) |
| Material | Multi-layer aluminum mesh |
| Frame Included | No — raw media sheet only |
| Pack Quantity | 1 sheet |
| Application | Range hood grease filter media rebuild / custom frame insert fabrication |
| Washable / Reusable | Yes — dishwasher (top rack) or hand wash with degreaser |
| Manufacturer | American Metal Filter Company |
How to Use Aluminum Mesh Foil for Filter Rebuilds
- Remove the existing filter from the range hood and inspect the perimeter frame for cracks, bent mounting tabs, or broken retaining clips. If the frame is structurally sound, proceed with a media rebuild. If the frame is damaged, order a complete framed replacement filter instead.
- Remove the spent mesh media from the frame by carefully prying open the crimped aluminum perimeter tabs or unscrewing the retaining ring, depending on your specific filter design.
- Measure the internal frame opening to determine the cut size required. Add approximately 1⁄4″ to each dimension to allow for overlap onto the frame ledge during reassembly.
- Cut the mesh foil to size: Use tin snips or heavy-duty scissors. Aluminum mesh cuts cleanly when sheared perpendicular to the weave. Cut on a flat, stable surface and wear cut-resistant gloves to protect against sharp mesh edges on the cut perimeter.
- Seat the cut sheet into the frame opening and re-crimp or re-fasten the perimeter retaining tabs to secure the new mesh in position. Confirm the sheet is fully flat and seated before reinstalling the filter in the range hood.
- Reinstall and test: Insert the rebuilt filter into the hood filter bay, restore power, and run the hood at full speed briefly to confirm normal airflow with the new media in place.
Aluminum Mesh Foil FAQ
Is this a complete filter or just the mesh material?
This is raw mesh media only — no frame is included. Order it when you have a serviceable range hood grease filter frame and need to replace only the mesh core. For a complete, ready-to-install grease filter with an aluminum perimeter frame, see our standard grease filter listings or our custom grease filter program.
Can I cut this sheet to a different size?
Yes. The 15″ × 24″ sheet can be cut to any smaller dimension. Use tin snips for clean, straight cuts through aluminum mesh. Alternatively, sharp heavy scissors work for smaller cuts. Always wear cut-resistant gloves — freshly cut aluminum mesh edges are sharp.
How do I clean and maintain rebuilt aluminum mesh filter media?
Clean monthly in the dishwasher (top rack) or by hand with hot water and a degreaser solution. Rinse thoroughly and allow to dry completely before reinstalling. Replace the media when the mesh shows physical damage, permanent distortion, or persistent clogging that routine cleaning cannot resolve.
